EXOR: Industrial Automation & HMI Solutions
Showcasing the breadth of Sasira’s manufacturing excellence and high-precision automation systems. Explore our portfolio of custom-engineered solutions driving efficiency across global industries.
Exor Products
Browse our Exor range. Request a specification and our team will get back to you.

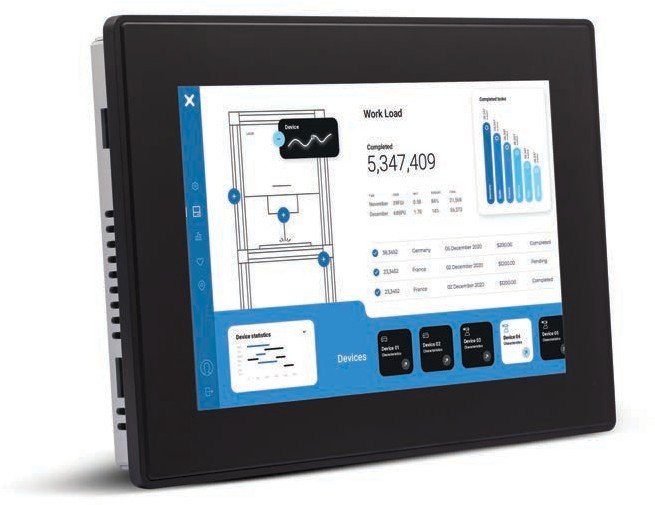

eX700M Series (eX705M / eX707M)
5" and 7" industrial HMI with 64-bit quad core CPU, for industrial, rugged, IoT control and marine & offshore use.
Key features
- 5" TFT 64K (800x480) / 7" TFT 16M (800x480)
- Projected capacitive multitouch
- 64-bit RISC quad core 1.6 GHz, Linux, 4 GB eMMC pSLC, 2 GB RAM
- 2-3 Ethernet ports, 1-2 USB, RS-232/485/422 serial
- IP66 front, IP20 rear
- 24 Vdc (10 to 32 Vdc), -20 to +60 °C
- CE, ATEX, IECEx, cULus Class 1 Div 2
- Part numbers: +EX705MU5P1, +EX707MU5P1
eX700M Series (eX710M / eX712M / eX715MH / eX721M)
10.1" to 21.5" widescreen industrial HMI with 64-bit quad core CPU.
Key features
- 10.1" 1280x800, 12.3" 1920x720, 15.6" & 21.5" 1920x1080 Full HD
- Projected capacitive multitouch
- 64-bit RISC quad core 1.6 GHz, Linux
- Max 3 serial ports using plug-in modules
- IP66 front, IP20 rear, -20 to +60 °C
- CE, ATEX, IECEx, cULus
- Part numbers: +EX710MU5P1, +EX712MU5P1, +EX715MHU5P1, +EX721MU5P1
eX700 Series (eX705 / eX707)
5" and 7" industrial HMI running Linux RT.
Key features
- 5" TFT 64K / 7" TFT 16M, 800x480 WVGA
- Projected capacitive multitouch, dimming to 0%
- 32-bit RISC single core 1 GHz / dual core 800 MHz, Linux RT
- 4 GB Flash, 512 MB / 1 GB RAM, 64 KB FRAM
- 2 or 3 Ethernet ports, SD card, 1-2 plug-in module slots
- 24 Vdc (10 to 32 Vdc)
- Part numbers: +EX705U5P1, +EX707U5P1
eX700 Series (eX710 / eX712 / eX715H / eX721)
10.1" to 21.5" widescreen industrial HMI running Linux RT.
Key features
- 10.1" 1280x800 WXGA, 12.3" 1920x720 HD, 15.6"/21.5" 1920x1080 Full HD
- 600 Cd/m2 typ. brightness (10.1")
- 32-bit RISC dual core / quad core 800 MHz
- -20 to +60 °C (vertical installation)
- Approvals incl. LR, EU RO MR
- Part numbers: +EX710U5P1, +EX712U5P1, +EX715HU5P1, +EX721U5P1

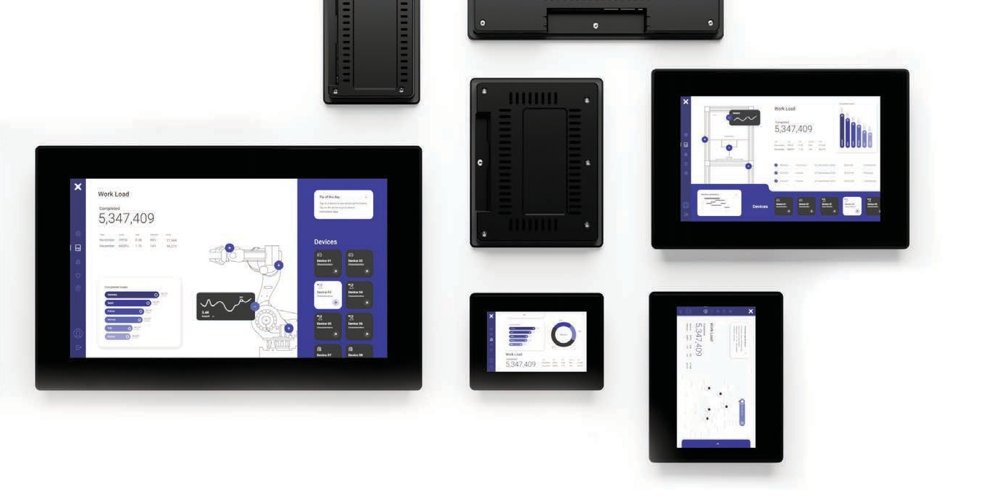

eX200 Series (eX205 / eX207 / eX210 / eX215)
5" to 15.6" HMI with 64-bit quad core CPU and isolated CAN port.
Key features
- 5", 7", 10.1" and 15.6" displays - 16.7M colors
- Projected capacitive multitouch
- 64-bit RISC quad core 1.6 GHz
- 4 GB Flash (pSLC mode - high reliability)
- 2 Ethernet (10/100), 1 USB, 1 serial, 1 isolated CAN port
- 24 Vdc (9 to 32 Vdc), -20 to +55 °C
- IP66 front, IP20 rear
- Ordering codes: 101006200U-0000-01 / -0002-01 / -0004-01 / -0006-01

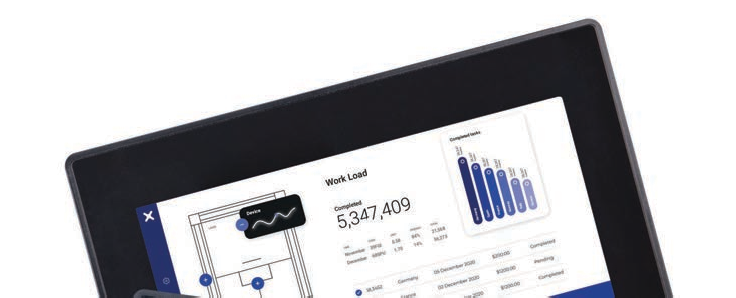

eSMART04M
4.3" compact HMI with resistive touch.
Key features
- 4.3" TFT 16:9 64K, 480x272
- Resistive touchscreen
- 32-bit RISC single core 1 GHz, Linux 3.12
- 4 GB Flash, 512 MB RAM
- 1 Ethernet, 1 USB, 1 serial (RS-232/485/422)
- 24 Vdc (10 to 32 Vdc), 0.25 A max
- IP66 front, IP20 rear, 0 to 50 °C
- Part number: +ESMA04MU301

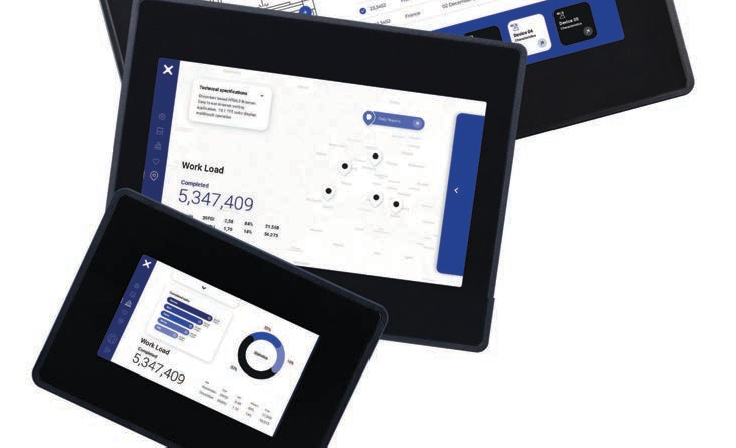

eSMART Series (eSMART07M / 107 / 107B / 10)
7" and 10.1" eSMART HMI panels.
Key features
- 7" and 10.1" TFT 16:9 64K
- 1024x600 WVGA
- Up to 2 Ethernet, 2 USB
- Up to 2 RS-232, 2 isolated RS-422/485, 2 isolated CAN 2.0b
- 0 to +50 °C, IP66 front, IP20 rear
- Part numbers: +ESMA07MU301, +ESMA107U301, +ESMA107BU301, +ESMA10U301

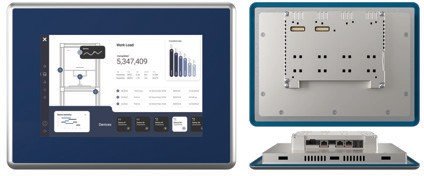

eX700FB Series (eX707FB / eX710MFB / eX715MFB)
HMI for food & pharmaceutical applications with IP69 front.
Key features
- IP69 (front), IP20 (rear) - Type 12, 4X
- -20 to +60 °C (vertical installation)
- Models: eX707FB, eX710MFB, eX715MFB

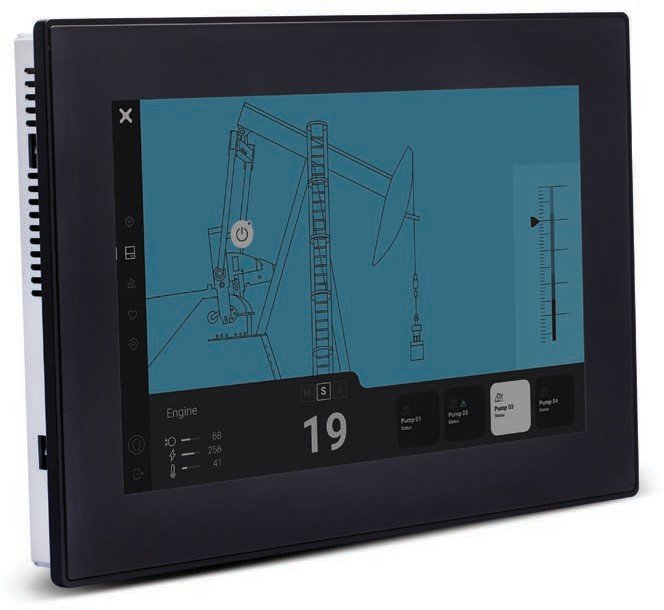

eX700G Series (eX707G / eX710G / eX710MG / eX715MG)
Rugged HMI range for harsh environments.
Key features
- Models: eX707G, eX710G, eX710MG, eX715MG, eX715MG Web
- 32-bit dual core 800 MHz or 64-bit quad core 1.6 GHz
- Operating temperature up to -30 to +70 °C
- ATEX / IECEx Zone 2/22
XA5 eXtreme Series
5" outdoor HMI with optical bonding, Wi-Fi and dual CAN FD.
Key features
- 5" TFT 64K, 800x480, 500 cd/m2, dimming down to 0%
- Projected capacitive multitouch, optical bonding
- 32-bit RISC dual core 650 MHz, Linux RT, 8 GB Flash, 1 GB RAM
- 2 Ethernet, 2 isolated CAN FD, isolated RS-485, Wi-Fi
- Temperature, accelerometer and environment light sensors
- -30 to +70 °C, IP66/IP67
- 24 Vdc (10 to 32 Vdc)

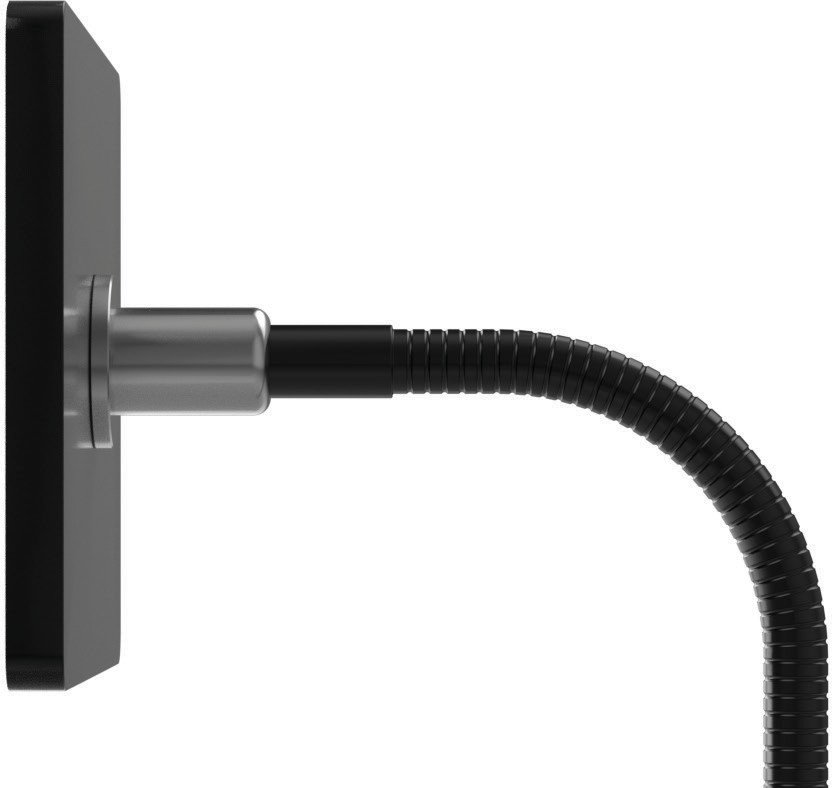

JSmart700M Series
Slim PoE-powered smart HMI from 7" to 21.5" with NFC and Wi-Fi.
Key features
- Models: JSmart707M, JSmart710M, JSmart715MH, JSmart721M
- 64-bit RISC quad core 1.6 GHz
- 10/100 PoE Ethernet, powered via IEEE 802.3af/at/bt PoE
- NFC (ISO/IEC 14443A), Wi-Fi IEEE 802.11a/b/g
- RGB LED, temperature & 3-axis accelerometer sensors
- IP67 (with appropriate accessories), -20 to +55 °C
- Part numbers: +JS707GB2U5P1, +JS710GC2U5P1, +JS715GE2U5P1, +JS721GE2U5P1
JSmart705
5" PoE-powered smart HMI.
Key features
- 5" TFT 16M, 800x480, 300 cd/m2
- Projected capacitive multitouch
- 32-bit RISC dual core 800 MHz, Linux RT, 4 GB Flash, 1 GB RAM
- 10/100 PoE Ethernet (IEEE 802.3af), 6 W max
- IP67 (with appropriate accessories)
- -20 to +55 °C
- Part number: +JS705BA0U5P1
JSmart700 Series (JSmart707 / 710 / 715H / 721)
7" to 21.5" PoE-powered smart HMI.
Key features
- 7", 10.1", 15.6" and 21.5" TFT 16M
- 32-bit RISC quad core 800 MHz
- 12 W to 35 W max power consumption
- Part numbers: +JS707BB1U5P1, +JS710BC1U5P1, +JS715CE1U5P1, +JS721CE1U5P1

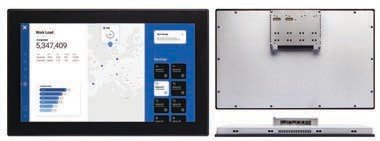

eX700M Web Series
Web-based HMI versions of the eX700M range from 5" to 21.5".
Key features
- Models: eX705M, eX707M, eX710M, eX712M, eX715MH, eX721M Web
- 64-bit RISC quad core 1.6 GHz, Linux
- 4 GB eMMC pSLC, 2 GB RAM
- Projected capacitive multitouch
- 24 Vdc (10 to 32 Vdc)

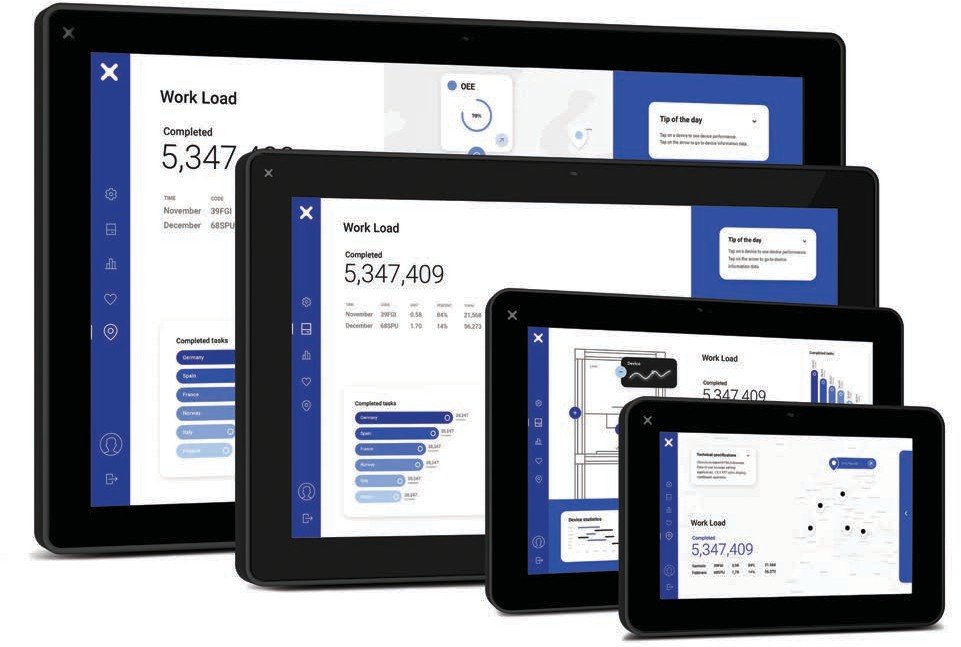

JSmart700M Web Series
Web based HMI versions of the JSmart700M range.
Key features
- Models: JSmart707M, 710M, 715MH, 721M Web
- PoE powered, slim design

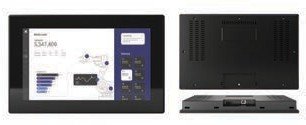

eX200 Web Series
Web based HMI versions of the eX200 range.
Key features
- Models: eX205, eX207, eX210, eX215 Web
eXware Series (eXware703)
DIN rail controller / gateway running Linux RT.
Key features
- 32-bit RISC single core 1 GHz, Linux RT, 4 GB Flash, 512 MB RAM, 64 KB FRAM
- 2 Ethernet, 1 USB, 1 serial (max 2 with plug-in modules)
- SD card, 1 slot for plug-in modules
- 24 Vdc (10 to 32 Vdc), 0.35 A max
- -20 to +60 °C, IP20
- 45x134 mm, 102 mm depth, 0.6 Kg, DIN rail (TS35)
eXware Series (eXware703M / 707 / 707M / 707Q)
Extended eXware controllers with more serial ports and plug-in slots.
Key features
- Models: eXware703M, eXware707, eXware707M, eXware707Q
- Up to 2 USB and max 3 serial ports using plug-in modules
- Up to 2 slots for plug-in modules
- -20 to +60 °C
- ATEX / IECEx Zone 2

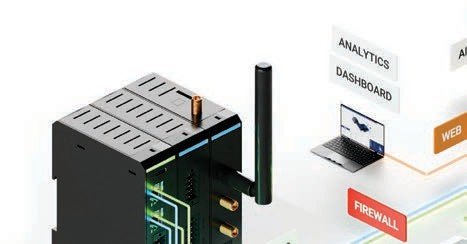

MicroEdge Series (Basic / Plus)
Modular industrial IoT edge gateway.
Key features
- 32-bit RISC single core 528 MHz
- USB 2.0 OTG Type C
- Versions: VPN (Corvina VPN), JMX (JMobile runtime), IOT (JMobile + Corvina VPN)
- FCC Part 15 Subpart B Class A, UL61010-1 / UL61010-2-201
MicroEdge Plug-In Modules
Plug-in modules for MicroEdge gateways.
Key features
- MicroEdge Plug-In RS485-CAN (XMP-000)
- MicroEdge Plug-In Wi-Fi LTE/4G (XMP-010)
- MicroEdge Plug-In LTE (XMP-011)
- LTE FDD/TDD, WCDMA, GSM bands
- GPS, GLONASS, BeiDou, Galileo, QZSS

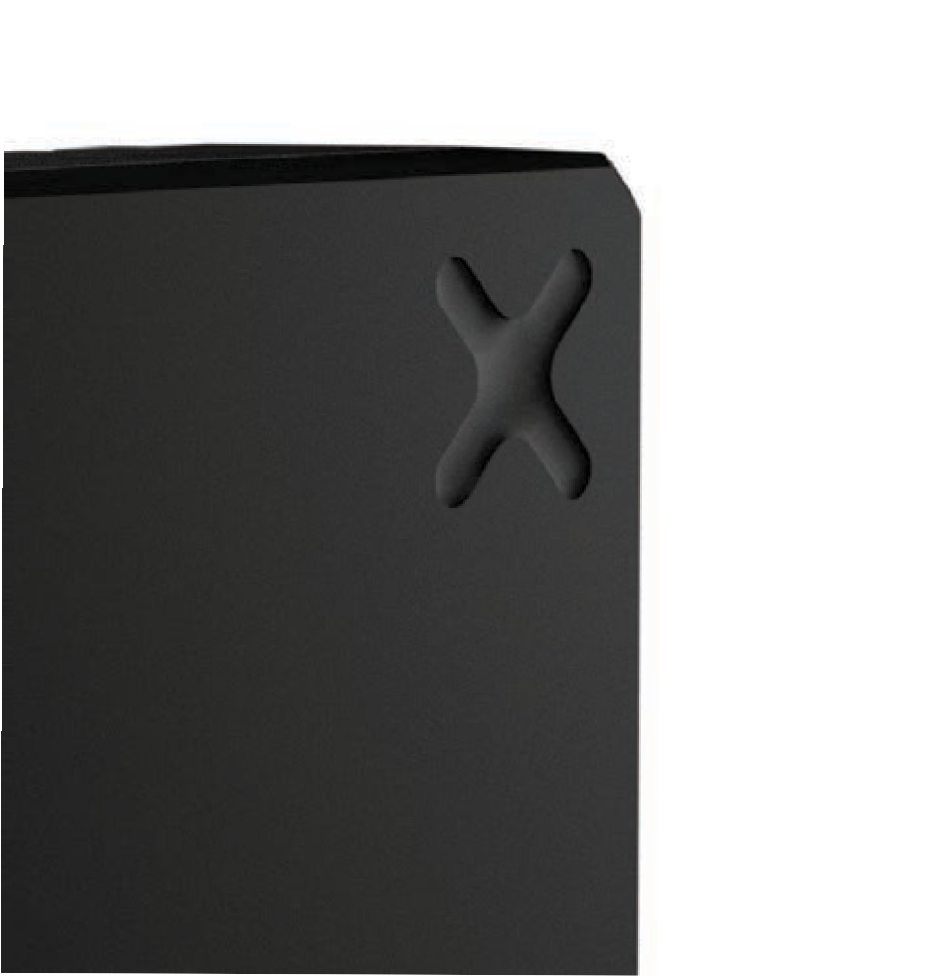

Xedge Slim
Intel-based slim industrial edge PC.
Key features
- Intel X6214RE 1.4 GHz / x6425RE 1.9 GHz
- None, Windows or Linux RT
- 64 GB eMMC, LPDDR4x up to 16 GB, TPM 2.0
- 1 Display port 1.2, 2x 1.0 GbE, 2x USB 3.1
- Up to 1 TB M.2 SATA SSD (optional)
- 2 slots for EXOR plug-in modules
- 24 Vdc, -20 to +60 °C
Xedge Expanded / Xedge15 / Xedge21
Intel x6000E-based expanded edge PC and 15.6"/21.5" panel PCs.
Key features
- Intel x6000E Series, up to 1.9 GHz
- None, Windows or Linux RT, 64 GB eMMC, up to 16 GB RAM
- 2 Display port 1.2, 2x 1.0 GbE + 2x 2.5 GbE
- 2 USB 3.1 + 2 USB 2.0, optional Wi-Fi 6 and LTE
- Up to 1 TB M.2 SATA SSD, TPM 2.0
- Wall mounting / DIN rail TS35 (optional)
X5 Wireless
5" wireless mobile HMI with safety controls.
Key features
- 5" TFT 480x272, resistive touch
- 32-bit RISC 528 MHz, Linux 4.14, 4 GB Flash
- Handwheel, 2 potentiometers, 16-position selector
- Illuminated emergency stop, 3-position enabling button, 19 keys
- Wi-Fi IEEE 802.11a/b/g/n, optional NFC
- 4400 mAh rechargeable battery, IP64
- SIL3 emergency stop & enabling device

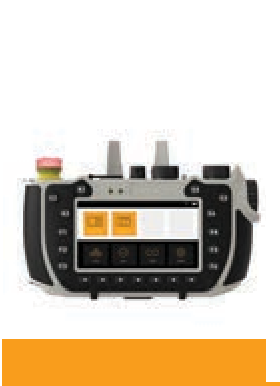

X5 Wired
5" wired mobile HMI with handwheel and emergency stop.
Key features
- 5" TFT 480x272, resistive touch
- Handwheel, optional potentiometers and selector
- Illuminated emergency stop, 3-position enabling button
- 1 Ethernet, 2 USB
- 24 Vdc (18 to 30 Vdc)
- Cable options 3 m, 5 m, 10 m, 20 m; connection box and docking cradle

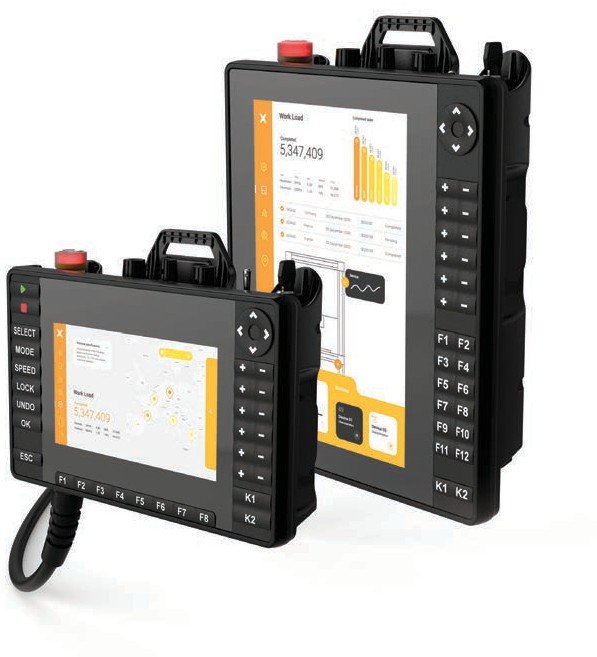

X7 / X10 Wired
7" and 10" wired mobile HMI with PCAP touch, emergency stop and keypad.
Key features
- Mobile HMI 7" / 10" PCAP touch
- Emergency stop, keypad, JMobile runtime
- Cable 5 m / 10 m, connection box, wall bracket accessories
- Net weight approx. 1.1 Kg (X7), 1.5 Kg (X10)
X7 / X10 Smart Wired
7" and 10" smart wired mobile HMI with safety link over PoE (preliminary data).
Key features
- 7" 1024x600 / 10" 800x1280, 400 cd/m2
- Projected capacitive multitouch
- 64-bit quad core 1.6 GHz, Linux RT, 4 GB Flash, 2 GB RAM
- Illuminated emergency stop, enable switch, key switch
- Safety link wired Ethernet 10/100 PoE
- SIL 3 emergency stop & enabling device, PLe
- Preliminary data

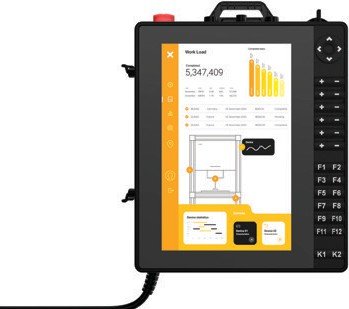

X7 / X10 Wireless
7" and 10" wireless mobile HMI with safety black channel link (preliminary data).
Key features
- Safety black channel link
- SIL 3 emergency stop & enabling device
- PL=d, Cat 3
- Preliminary data
The EXOR Advantage
“You can depend on a single vendor for almost every requirement in an automation project. Programmable Controllers, Termination Accessories, Relay Components, Power Supplies, Ethernet Switches, Wireless Devices, Surge Protection, Industrial PC’s… You name it… EXOR has it.”
