Phoenix Contact

Technology for the future Phoenix Contact, founded over 80 years ago in Germany is the world leader in industrial automation & connection technology. Sasira Automation is an Authorized System Solutions Partner for Phoenix Contact PLC's and automation products.

COST EFFECTIVE AUTOMATION - PHOENIX CONTROLLERS

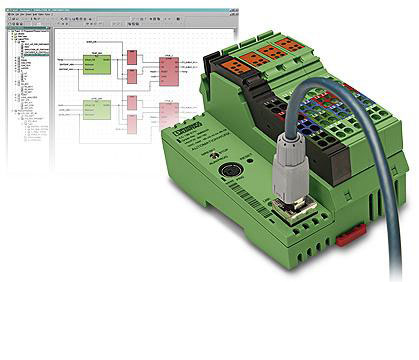

Performance Class 100 Series Compact & Modular Inline Controller: The right controller for every application. An Inline controller, highly modular & expandable on the I/O level which supports all the industry-relevant sensor and actuator interfaces, from digital and analog inputs and outputs to function terminals for open and closed loop control. To integrate more distributed devices, an INTERBUS interface is available in addition to the Ethernet coupling. Every processor has an integrated web server and FTP server which can be accessed through the Ethernet interface. The web server holds all the graphic screens which can be accessed by a standard Computer or Netbook having Internet Browser. No need of an additional HMI package or SQL database which makes it the most cost-effective solution available in the market. The 100 series performance class offers the best performance and very attractive for small to medium-sized applications. In addition to the integrated web and FTP server, controllers of the 100 series performance class provide all protocols and transmission standards from IT technology without requiring expensive additional modules.

Please contact us for a complete solution for your automation requirement We are committed to serve you

The Phoenix Advantage:

You can depend on a single vendor for almost every requirement in an automation project. Programmable Controllers, Termination Accessories, Relay Components, Power Supplies, Ethernet Switches, Wireless Devices, Surge Protection, Industrial PC's... You name it...Phoenix has it.

ILC 100 Series - General Features:

  • Real Time Clock, Flash Card Memory.
  • Fast CPU : 90 micro sec for 1K bit.
  • Integrated Ethernet, GSM/GPRS.
  • Integrated Field Bus Master.
  • Built-in Web server, FTP Server.
  • Supports HTTP, FTP, SNMP, SQL & OPC.
  • Free Programming Software.
  • IP 67 I/O integration without field bus.
  • Unlimited Timer / Counter.
  • Interfaces: 2x Ethernet, RS 232.
  • Integrated Field Bus Master (Interbus).
  • Max 4096 I/O points per Processor.
  • Processing time of 90 µ for 1K instructions.

Connectivity/Expandability:

  • Serial Communication.
  • INTERBUS Remote bus.
  • IO Link Master.
  • Dual Redundant Ethernet.
  • Wireless/GSM/GPRS/Internet/VPN

Wide Range of I/O Modules:

  • Motor Starter.
  • Strain Gauges.
  • Position detection.
  • Proportional Valves.
  • Signal counter/Signal Generator.
  • Stepper Motor control.
  • IP67 I/O Modules

Latest Updates from Phoenix

Offering State-of-the-art GSM/GPRS technology for your data transmission & Remote Control needs.

For more & further details – Please Contact Us.
